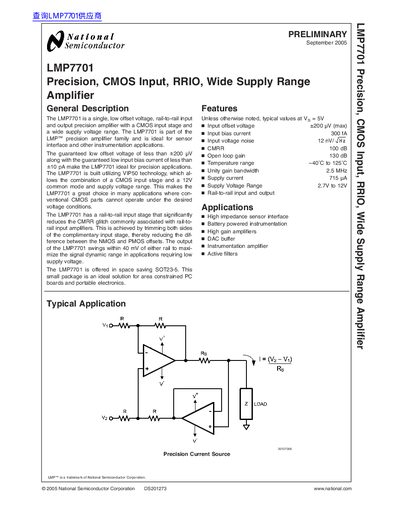

The LMP7701 is a single, low offset voltage, rail-to-rail input and output precision amplifier with a CMOS input stage and a wide supply voltage range. It is ideal for sensor interface and other instrumentation applications, with guaranteed low offset voltage and low input bias current, making it suitable for precision applications.
The LMP7701 is a single, low offset voltage, rail-to-rail input and output precision amplifier with a CMOS input stage and a wide supply voltage range. It is part of the LMP™ precision amplifier family and is ideal for sensor interface and other instrumentation applications. The device features guaranteed low offset voltage of less than ±200 µV and input bias current of less than ±10 pA, making it suitable for precision applications.
| Input offset voltage | ±200 µV (max) |
|---|---|
| Input bias current | 300 fA |
| Input voltage noise | 12 nV/√Hz |
| Common mode rejection ratio | 100 dB |
| Open loop gain | 130 dB |
| Temperature range | –40˚C to 125˚C |
| Unity gain bandwidth | 2.5 MHz |
| Supply current | 715 µA |
| Supply Voltage Range | 2.7V to 12V |
| Package | SOT23-5 |
The device operates with a supply voltage range from 2.7V to 12V.
The device is intended to function within a temperature range of −40˚C to +125˚C.
