The NE/SA/AU5232 is a low voltage, high performance dual operational amplifier that is matched. It has unique input and output characteristics, including the ability for both input and output to operate on a rail-to-rail basis, which is particularly critical in low voltage applications. The output swings to less than 50 mV of both rails across the entire power supply range. The NE/SA/AU5232 is capable of delivering 5.5 V peak-to-peak across a 600 Ω load and will typically draw only 700 µA per amplifier. The bandwidth is 2.5 MHz and the 1% settling time is 1.4 µs.

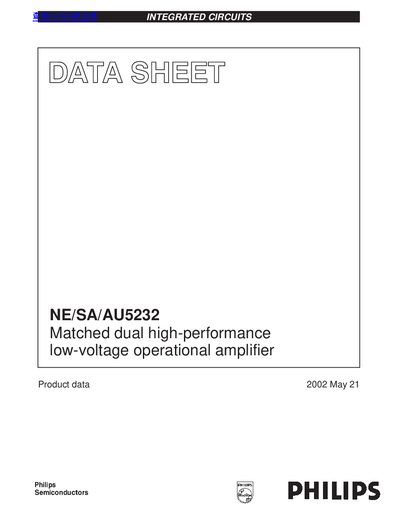

The Philips NE/SA/AU5232 is a matched, low voltage, high performance dual operational amplifier designed for applications requiring both input and output rail-to-rail operation. It features an output swing of less than 50 mV from the rails across the entire power supply range and can deliver 5.5 V peak-to-peak across a 600 Ω load while typically drawing only 700 µA per amplifier.
| Supply current (typical) | 700 µA per amplifier |
|---|---|
| Unity gain bandwidth | 2.5 MHz |
| 1% settling time | 1.4 µs |
| Output swing (typical) | < 50 mV from rails |
| Peak load current capability | ±15 mA |
| Slew rate | 0.8 V/µs |
| Input referred voltage noise (1 kHz) | 33 nV/√Hz |
The device typically draws only 700 µA per amplifier.
Yes, it has functionality to 1.8 V typical and supports a wide common-mode input voltage range.
The NE/SA/AU5232 is available in 8-Pin Plastic Small Outline (SO) and 8-Pin Plastic Dual In-Line Package (DIP).
