The NE/SA5234 is a low voltage, high performance quad operational amplifier with wide common-mode input voltage range, output swing within 50mV of both rails, and functionality to 1.8V typical.

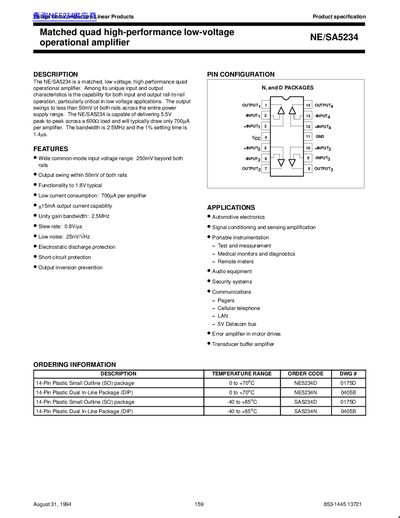

This document is a product specification datasheet for the Philips NE/SA5234, a matched quad high-performance low-voltage operational amplifier. Key features include rail-to-rail input and output operation, with the output swinging to less than 50mV of both supply rails across the entire power supply range. The device is designed for functionality down to 1.8V typical and offers low current consumption of 700uA per amplifier.
| Slew rate | 0.8 V/us |
|---|---|
| Input referred voltage noise | 25 nV/VHz |
| Output swing | Less than 50mV of both rails |
| Single supply voltage | +2 to +5.5 V |
The device is capable of functionality to 1.8V typical.
The device will typically draw only 700uA per amplifier.
The NE/SA5234 is available in 14-Pin Plastic Small Outline (SO) and 14-Pin Plastic Dual In-Line Package (DIP).
