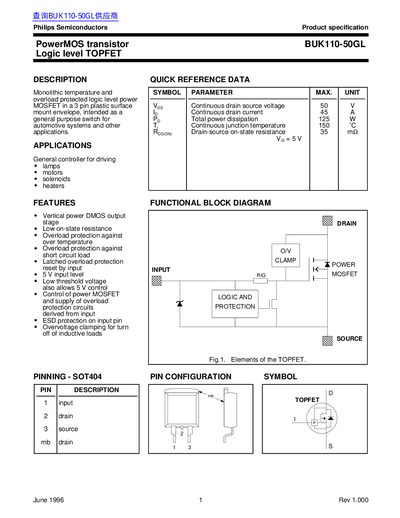

This document is a specification of the Philips Semiconductors BUK110-50GL product, which introduces the characteristics, features, parameters, application scenarios and other information of the product.
The Philips BUK110-50GL is a monolithic temperature and overload protected logic level power MOSFET in a 3-pin plastic surface mount envelope. It is designed as a general-purpose switch for automotive systems and other applications, featuring a vertical power DMOS output stage with low on-state resistance.
| Continuous drain source voltage | 50 V |
|---|---|
| Continuous drain current | 45 A |
| Total power dissipation | 125 W |
| Continuous junction temperature | 150 °C |
| Package type | SOT404 |
The typical input threshold voltage is 1.5 V when the drain-source voltage is 5 V and the drain current is 1 mA.
The maximum continuous drain current is 45 A when the junction temperature is 25 °C.
The maximum total power dissipation is 125 W when the case temperature is 25 °C.
The device triggers over-temperature protection when the junction temperature reaches 150 °C.
