BUK113-50DL is a 50V logic level power MOSFET from Philips Semiconductors, used in automotive systems and other applications.

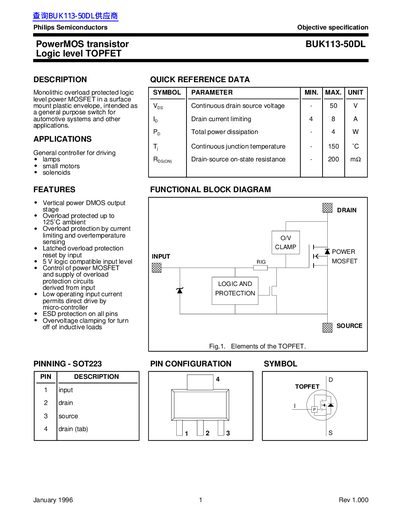

This document is an objective specification datasheet for the Philips BUK113-50DL, a monolithic overload protected logic level power MOSFET. It is designed as a general-purpose switch for automotive systems and other applications, featuring a surface mount plastic envelope in a SOT223 package.
The device includes built-in protection mechanisms such as current limiting, overtemperature sensing, and overvoltage clamping. It is compatible with 5 V logic levels, allowing for direct drive by microcontrollers, and is intended for driving loads such as lamps, small motors, and solenoids.
| Continuous drain source voltage | 50 V |
|---|---|
| Drain current limiting | 4 to 8 A |
| Total power dissipation | 4 W |
| Package type | SOT223 |
The maximum continuous drain source voltage is 50 V.
The maximum total power dissipation is 4 W.
The maximum continuous junction temperature is 150 °C.
