The BUK110-50DL is a logic level power MOSFET from Philips Semiconductors with low on-state resistance, overload protection against over temperature and short circuit load.

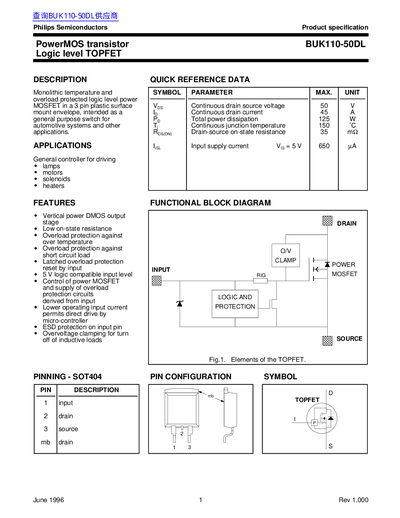

The Philips BUK110-50DL is a monolithic temperature and overload protected logic-level power MOSFET packaged in a 3-pin plastic surface mount envelope. It is intended as a general-purpose switch for automotive systems and other applications, featuring a vertical power DMOS output stage.
| Continuous drain source voltage | 50 V |
|---|---|
| Total power dissipation | 125 W |
| Continuous junction temperature | 150 °C |
| Drain-source on-state resistance | 35 mΩ |
| Input supply current | 650 µA |
The maximum continuous drain current is 45 A at 25°C.
The device supports a continuous drain current of 45 A when the junction temperature is 25 °C.
The transistor has a maximum total power dissipation rating of 125 W at 25 °C.
