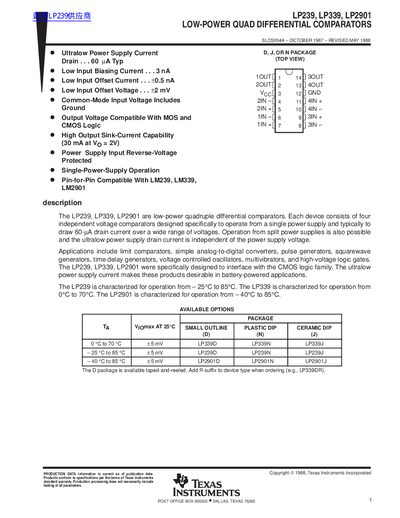

The LP239, LP339, LP2901 are low-power quadruple differential comparators. Each device consists of four independent voltage comparators designed specifically to operate from a single power supply and typically to draw 60-µA drain current over a wide range of voltages.
The document details three low-power quadruple differential comparator models: the LP239, LP339, and LP2901. These devices are specifically designed to operate from a single power supply and draw ultralow drain current, making them suitable for battery-powered applications. They feature pin-for-pin compatibility with the LM239, LM339, and LM2901 series.
| Supply Current (Typical) | 60 µA |
|---|---|
| Input Offset Voltage (Max) | +5 mV |
| Output Sink Current (at Vo = 2V) | 30 mA |
| Operating Temperature Range (LP2901) | -40°C to 85°C |
| Supply Voltage Range | 5 V to 30 V |
The devices typically draw 60 µA drain current over a wide range of voltages.
Yes, they are specifically designed to interface with the CMOS logic family and have output voltage compatibility.
The absolute maximum rating for differential input voltage is +36 V.
