LP2283F140LC01 switch specifications: 100mA @ 30VDC, electrical life 100,000 cycles, contact resistance < 50 mΩ initial, actuation force 140 +/- 50gF, actuation travel 1.0 mm to lock 1.8 mm full travel, dielectric strength 1000Vrms min, insulation resistance > 100MΩ min, operating temperature -40°C to 85°C, storage temperature -40°C to 85°C.

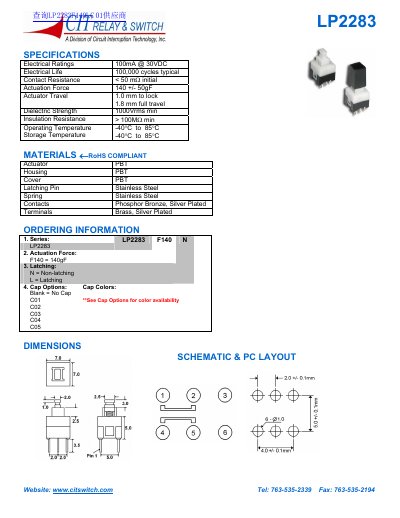

This document provides technical data for the CIT LP2283 series of latching relays. It details electrical ratings such as a maximum current of 100mA at 30VDC and an actuation force of 140gF. The relay features PBT housing materials and stainless steel components, operating within a temperature range of -40°C to 85°C.
| Current Rating | 100mA @ 30VDC |
|---|---|
| Contact Resistance | < 50 mQ initial |
| Actuation Force | 140 +/- SOgF |
| Dielectric Strength | 1000Vrms min |
| Operating Temperature | -40°C to 85°C |
The relay requires an actuation force of 140 +/- 50gF.
The relay has an electrical life of 100,000 cycles typical.
The relay has a dielectric strength of 1000Vrms min.
