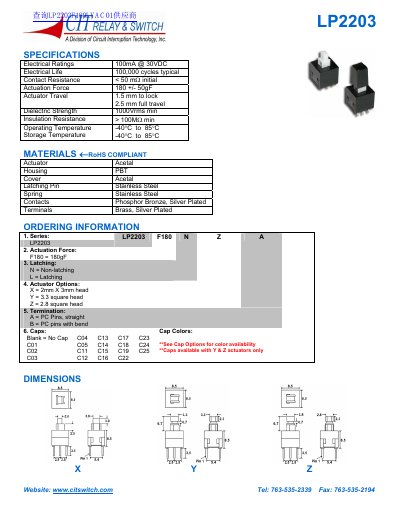

This document describes the specifications and features of a switch product with model LP2203, including electrical ratings, materials used, and ordering information.
The document details the specifications for the LP2203 switch, including electrical ratings such as 100mA at 30VDC and an electrical life of 100,000 cycles. It lists materials used, which are RoHS compliant, including Acetal actuators, PBT housings, and stainless steel latching pins and springs.
| Electrical Ratings | 100mA @ 30VDC |
|---|---|
| Electrical Life | 100,000 cycles typical |
| Contact Resistance | < 50 mΩ initial |
| Actuation Force | 180 +/- 50gF |
| Actuator Travel | 1.5 mm to lock 2.5 mm full travel |
| Dielectric Strength | 1000Vrms min |
| Insulation Resistance | > 100MΩ min |
| Storage Temperature | -40°C to 85 °C |
The switch uses RoHS compliant materials including Acetal for the actuator and cover, PBT for the housing, and Stainless Steel for the latching pin and spring.
Actuator options include X for 2mm/3mm head, Y for 3.3 square head, and Z for 2.8 square head.
Termination options are A for PC Pins, straight and B for PC pins with bend.
