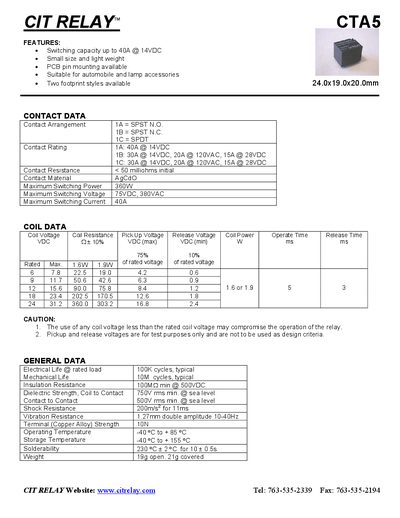

CIT CTA5 Relay Datasheet

Q: What are the available contact arrangements for the CTA5 relay?

The available contact arrangements are 1A (SPST NO), 1B (SPST N.C.), and 1C (SPDT).

Q: What is the maximum switching current for the CTA5 relay?

The maximum switching current is 40A.

Q: What are the available coil voltages for the CTA5 series?

Available coil voltages include 6VDC, 9VDC, 12VDC, 18VDC, and 24VDC.

This document describes the features and characteristics of CIT RELAY products, including switching capacity, size, applicable areas, and contact data.

Brand: CIT
Category: Other Electronics
Document type: Datasheet
Language: English
Pages: 3
File format: PDF
File size: 178 KB
Published: 11 June, 2012
Updated: 28 September, 2023
Model: CTA5
MD5 checksum: 1479A714873E7AB490DA4C9435EBDBBC
PDF: CIT CTA5 Relay Datasheet PDF

About this manual

This document provides technical specifications for the CIT CTA5 series of relays. Key features include a switching capacity up to 40A at 14VDC, small size, and availability in PCB pin mounting styles suitable for automobile and lamp accessories. The relay is available in two footprint styles and offers various contact arrangements including SPST NO, SPST N.C., and SPDT.

What's inside

Features
Contact Data
Coil Data
General Data
Ordering Information
Dimensions

Specifications

Switching capacity	up to 40A @ 14VDC
Contact Resistance	< 50 milliohms initial
Contact Material	AgCdO
Maximum Switching Power	360W
Maximum Switching Current	40A
Weight	19g open, 21g covered

Frequently asked questions

What are the available contact arrangements for the CTA5 relay?
