This document describes a relay with dimensions of 26.0 x 26.0 x 24.5 (39.5) mm. The relay has a large switching capacity of up to 40A and is suitable for applications such as automobile and lamp accessories. It is small in size and light in weight, and can be mounted using PCB pins or quick connect terminals. The relay is QS-9000 and ISO-9002 certified, and complies with RoHS directive.

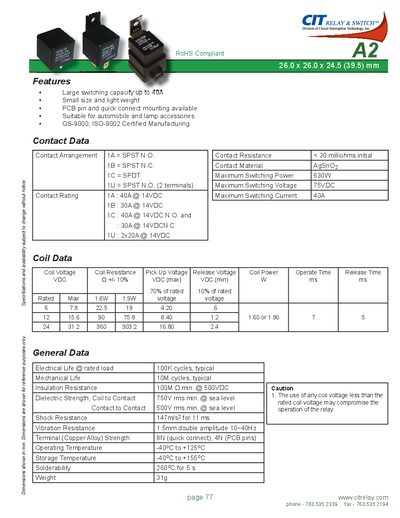

This document provides a datasheet for the CIT A2 series of small size, light weight relays. These components feature large switching capacities up to 40A and are suitable for automobile and lamp accessories. The product is RoHS compliant and manufactured under QS-9000 and ISO-9002 certifications.
| Maximum Switching Capacity | 40A |
|---|---|
| Electrical Life | 100K cycles, typical |
| Mechanical Life | 10M cycles, typical |
| Operating Temperature | -40°C to +125°C |
| Weight | 31g |
The A2 series offers SPST N.O., SPST NC, SPDT, and SPST N.O. (2 terminals) configurations.
The relays support 6VDC, 12VDC, and 24VDC coil voltages.
Terminations include PCB Pins (P) and Quick Connects (Q).
