This document describes a RoHS compliant relay product with a large switching capacity, suitable for applications such as automotive and lamp accessories.

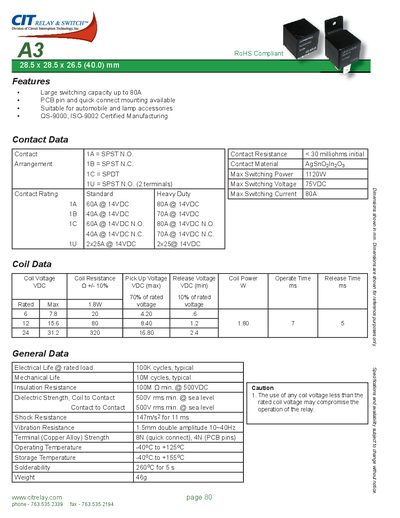

This document provides a datasheet for the CIT Series A3 relay. Key features include large switching capacities of up to 80A and availability in PCB pin or quick connect mounting styles. The product is suitable for automobile and lamp accessories and is manufactured under QS-9000 and ISO-9002 certifications.
| Max Switching Capacity | 80A |
|---|---|
| Contact Resistance (1A) | < 30 milliohms initial |
| Max Switching Voltage (1U) | | 75VDC |
| Electrical Life | 100K cycles, typical |
| Mechanical Life | 10M cycles, typical |
| Operating Temperature | -40°C to +125°C |
The standard heavy duty contacts support a max switching current of 80A.
The relay is available with both PCB pin and quick connect mounting styles.
