A2 is a relay from citrelay company. Its features are small size, light weight, large switching capacity (up to 40A), suitable for automobile and lamp accessories.

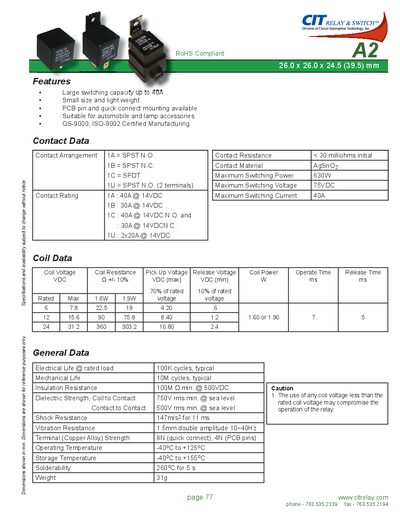

This document is a technical datasheet for the CIT A2 series of relays. It highlights features such as large switching capacity up to 40A, small size, and suitability for automobile and lamp accessories. The product is manufactured under QS-9000 and ISO-9002 certifications.
| Maximum Switching Capacity | 40A @ 14VDC |
|---|---|
| Operating Temperature Range | -40°C to +125°C |
| Electrical Life | 100K cycles, typical |
| Mechanical Life | 10M cycles, typical |
| Dimensions (Standard) | 26.0 x 26.0 x 24.5 mm |
| Weight | 31g |
The relay is available with 6VDC, 12VDC, and 24VDC coils.
Yes, the document explicitly states that this product is RoHS Compliant.
