CT1102V series square actuator is available in 10 different actuator lengths and 3 actuation forces.

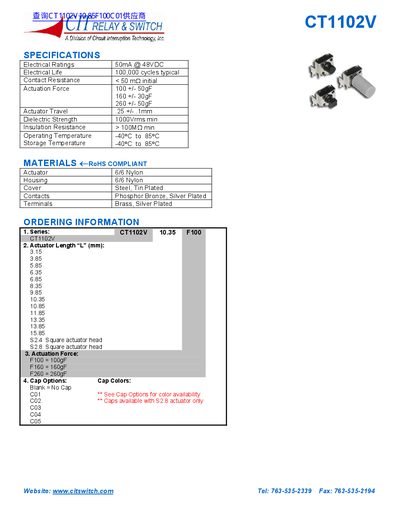

This document provides technical data for the CIT CT1102V Series Relay & Switch, a product of Circuit Interruption Technology, Inc. The device features electrical ratings of 50mA at 48VDC with an actuation force ranging from 100gF to 260gF and is constructed from RoHS-compliant materials including Nylon actuators and Phosphor Bronze contacts.
The datasheet details various ordering options, including different actuator lengths (L) from 3.15mm to 15.85mm and multiple cap color choices for the C01 through C05 configurations.
| Operating Temperature | -40°C to 85°C |
|---|---|
| Electrical Life | 100,000 cycles typical |
| Contact Resistance | < 50 mQ initial |
| Actuator Material | 6/6 Nylon |
| Housing Material | 6/6 Nylon |
The unit can operate at temperatures up to 85°C.
It has an electrical life of 100,000 cycles typical.
The device has a dielectric strength of at least 1000Vrms.
