LCR-14-25/10 is a relay produced by Electro-Stock. It is characterized by its small size and light weight, and can be used in automobile and lamp accessories. The maximum switching current is 25A, the maximum switching voltage is 75VDC, and the maximum switching power is 350W.

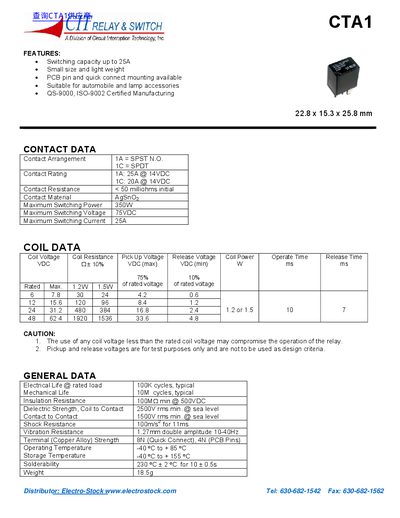

This document provides technical data for the CIT CTA1 series of relays and switches. Key features include a small size, light weight, and suitability for automobile and lamp accessories with switching capacities up to 25A.
The datasheet lists specific contact arrangements (SPST NO or SPDT), electrical life ratings, insulation resistance values, and operating temperature ranges from -40°C to +85°C. It also includes detailed ordering codes based on series, contact arrangement, sealing options, termination type, coil voltage, power, and suppression requirements.
| Switching Capacity | up to 25A |
|---|---|
| Contact Resistance | < 50 milliohms initial |
| Maximum Switching Power | 350W |
The CTA1 series offers two contact arrangements: SPST NO (1A) and SPDT (1C).
Supported coil voltages include 6VDC, 12VDC, 24VDC, and 48VDC.
Termination options include PCB Pins (P) and Quick Connect (Q).
