CIT Relay A3 series relays are ideal for automotive and lamp accessories. The relays have large power, reliable performance, high quality manufacturing, and meet QS-9000, ISO-9002 certification standards.

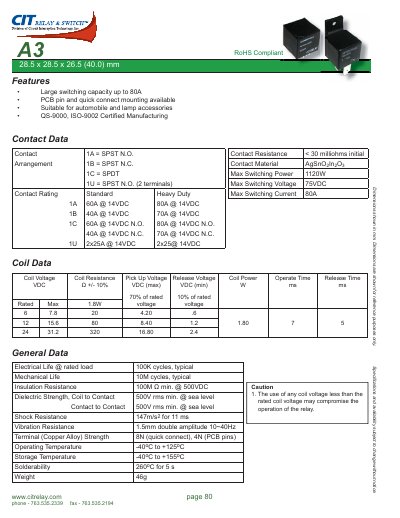

The A3 series electromagnetic relay from Citrelay is designed for automobile and lamp accessory applications. It offers a compact size of 28.5 × 28.5 × 26.5 mm and complies with RoHS, QS‑9000, and ISO‑9002 standards.
Key specifications include coil voltage options of 6 VDC, 12 VDC, and 24 VDC, a maximum coil power of 1.8 W, contact ratings up to 80 A at 14 VDC, and an operating temperature range of –40 °C to +125 °C. Electrical life is rated at 100 k cycles and mechanical life at 10 M cycles.
| Coil Voltage options | 6VDC, 12VDC, 24VDC |
|---|---|
| Coil Resistance | ±10% |
| Pick‑up Voltage | 70% of rated voltage |
| Release Voltage | 10% of rated voltage |
| Coil Power | 1.8 W |
| Max Switching Power | 1120 W |
| Max Switching Voltage | 75 VDC |
| Electrical Life | 100 k cycles |
| Mechanical Life | 10 M cycles |
| Operating Temperature | -40 °C to +125 °C |
| Weight | 46 g |
The relay can be supplied with 6 VDC, 12 VDC, or 24 VDC coil voltage.
The relay operates from –40 °C up to +125 °C.
The electrical life at rated load is rated for 100 000 cycles.
