The PUMA 68FV64006X is a 2M x 32 Flash Module with access times of 90, 120 and 150 ns. The output width can be configured as 8, 16 or 32 bits wide for application flexibility. It features a 64K byte sector size, completely static operation, 100,000 write and erase cycles, and 10 year data retention.

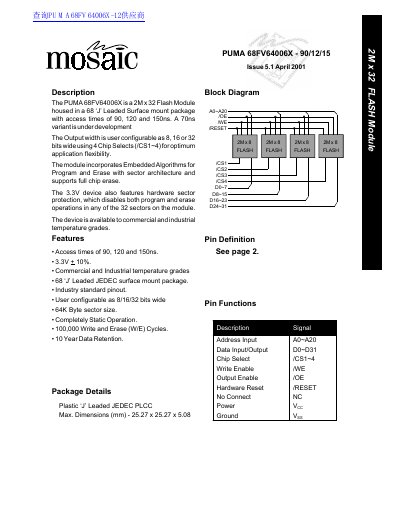

The Mosaic PUMA 68FV64006X is a 2M x 32 Flash Module housed in a 68-pin 'J' Leaded Surface Mount package. It features access times of 90, 120, and 150ns and supports user-configurable output widths of 8, 16, or 32 bits using four Chip Selects. The device incorporates embedded algorithms for program and erase operations with sector architecture and supports full chip erase.
| Memory Organization | 2M x 32 |
|---|---|
| Access Times | 90, 120, 150ns |
| Data Retention | 10 Year |
| Write and Erase Cycles | 100,000 |
| Package Type | 68 pin 'J' Leaded PLCC |
The device is available with access times of 90, 120, and 150ns.
The device offers 10 Year Data Retention.
