The PUMA68FV16006X is a 512Kx32 FLASH module that can be configured as 8/16/32 bits wide. It supports access times of 70, 90, and 120ns, operates at 3.3V voltage, and is available in commercial and industrial temperature grades.

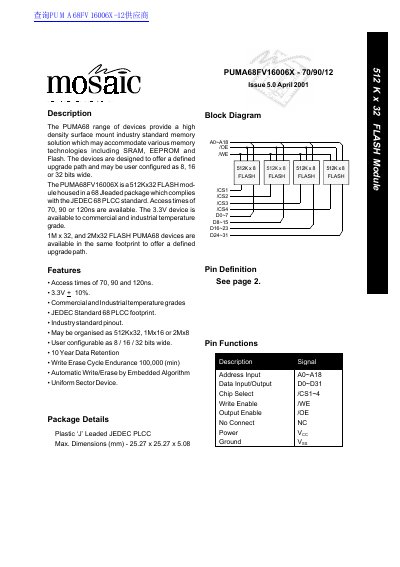

The document describes the PUMA68 range of high-density surface mount industry standard memory solutions. The specific device, PUMA68FV16006X, is a 512Kx32 FLASH module housed in a 68 leaded package complying with the JEDEC 68 PLCC standard.
Key features include access times of 70, 90, or 120ns, operation at 3.3V +/- 10%, and availability in commercial and industrial temperature grades. The device supports user configuration as 8, 16, or 32 bits wide and offers a defined upgrade path to larger capacities.
| Memory Type | FLASH |
|---|---|
| Capacity | 512K x 32 |
| Access Time | 70, 90 or 120ns |
| Operating Voltage | 3.3V +/- 10% |
| Temperature Grade | Commercial and Industrial |
| Package Type | 68 pin 'J' Leaded PLCC |
| Data Retention | 10 Year |
| Write/Erase Cycle Endurance | 100,000 (min) |
The devices offer access times of 70, 90 or 120ns.
Yes, it may be user configured as 8, 16 or 32 bits wide.
It complies with the JEDEC 68 PLCC standard.
