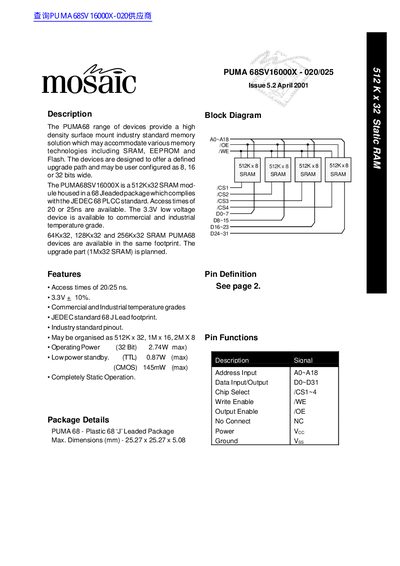

The PUMA68 range of devices provide a high density surface mount industry standard memory solution which may accommodate various memory technologies including SRAM, EEPROM and Flash. The devices are designed to offer a defined upgrade path and may be user configured as 8, 16 or 32 bits wide. The PUMA68SV16000X is a 512Kx32 SRAM module housed in a 68 Jleaded package which complies with the JEDEC 68 PLCC standard. Access times of 20 or 25ns are available. The 3.3V low voltage device is available to commercial and industrial temperature grade.
The Mosaic PUMA68SV16000X is a 512Kx32 SRAM module housed in a 68-pin PLCC package that complies with the JEDEC 68 PLCC standard. The device is designed to offer a defined upgrade path and may be user configured as 8, 16, or 32 bits wide. It is available with access times of 20 or 25ns and operates at a 3.3V low voltage supply.
| Supply Voltage | 3.3V +/- 10% |
|---|---|
| Operating Temperature (Commercial) | 0 to +70 °C |
| Operating Temperature (Industrial) | -40 to +85 °C |
| Max Power Dissipation | 4.0 W |
The maximum supply current in 32-bit mode is 760 mA.
The maximum power dissipation is 4.0 W.
The maximum operating temperature is 85 °C.
The maximum supply current is 760 mA.
