This document is about the query service for the PUMA2E1000-10 supplier. The product has specific features and characteristics.

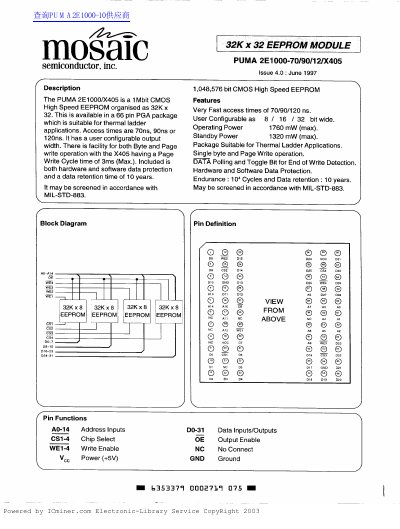

The PUMA 2E1000/X405 is a 1Mbit CMOS High Speed EEPROM organized as 32K x 32. It is available in a 66 pin PGA package suitable for thermal ladder applications. The device offers access times of 70ns, 90ns, or 120ns and features user-configurable output width of 8, 16, or 32 bits.
| Memory Capacity | 1Mbit (32K x 32) |
|---|---|
| Package Type | 66 pin PGA |
| Access Times | 70ns, 90ns, or 120ns |
| Data Retention | 10 years |
| Operating Power | 1760 mW (max) |
| Standby Power | 1320 mW (max) |
| Endurance | 10^5 Cycles |
| Operating Temperature Range | -55 to +125 °C |
The device has a data retention time of 10 years.
Yes, the output width is user configurable as 8, 16, or 32 bits wide.
The available access times are 70ns, 90ns, or 120ns.
