The document describes a product of 512K x 32 Static RAM. The product features access times of 12/15/17ns, 5V voltage, commercial and industrial temperature grades, etc.

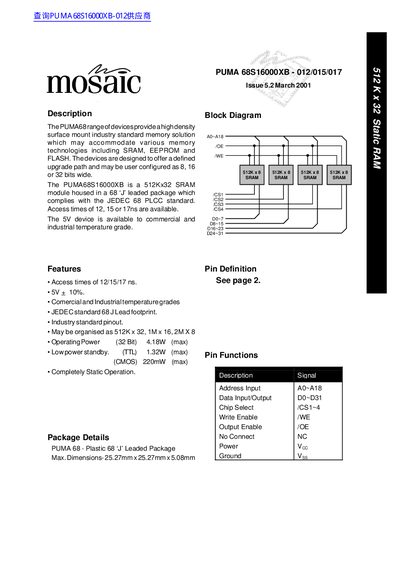

The Mosaic PUMA68S16000XB is a high-density surface mount SRAM module housed in a 68 'J' leaded package that complies with the JEDEC 68 PLCC standard. It offers access times of 12, 15, or 17ns and is available in commercial and industrial temperature grades. The device supports 5V operation and can be configured as 8, 16, or 32 bits wide.
| Memory Organization | 512K x 32, 1M x 16, 2M x 8 |
|---|---|
| Access Times | 12, 15 or 17ns |
| Operating Power (32 Bit) | 4.18W (max) |
| Low Power Standby (TTL) | <=1.32W (max) |
| Low Power Standby (CMOS) | 220mW (max) |
| Package Type | 68 'J' Leaded PLCC |
| Operating Temperature (Commercial) | 0 to 70 °C |
| Operating Temperature (Industrial) | -40 to 85 °C |
The device is available with access times of 12, 15, or 17ns.
Yes, the devices may be user configured as 8, 16, or 32 bits wide.
The maximum operating power for the 32-bit mode is 4.18W.
