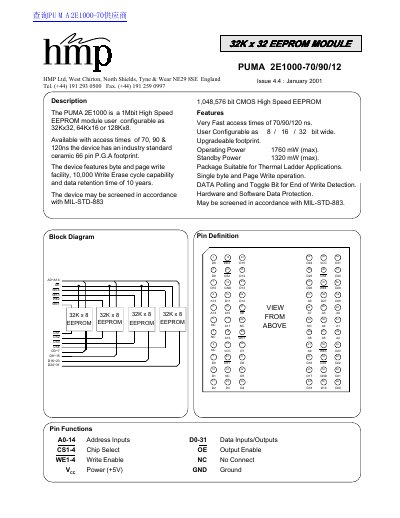

The PUMA 2E1000 is a 1Mbit High Speed EEPROM module user configurable as 32Kx32, 64Kx16 or 128Kx8. Available with access times of 70, 90 & 120ns the device has an industry standard ceramic 66 pin P.G.A footprint. The device features byte and page write facility, 10,000 Write Erase cycle capability and data retention time of 10 years. The device may be screened in accordance with MIL-STD-883.
The HMP PUMA 2E1000 is a 1Mbit High Speed EEPROM module that is user-configurable as 32Kx32, 64Kx16, or 128Kx8. The device features byte and page write facilities, 10,000 write erase cycle capability, and a data retention time of 10 years. It is available with access times of 70, 90, and 120ns and utilizes an industry-standard ceramic 66 pin PGA footprint.
The datasheet details DC and AC electrical characteristics, including operating conditions, timing parameters for read and write cycles, and data polling features. It also describes the device operation, including read/write initiation, page mode write capabilities, and software protection mechanisms. The document concludes with package details and military screening procedures.
| Memory Capacity | 1Mbit |
|---|---|
| Configurations | 32Kx32, 64Kx16 or 128Kx8 |
| Access Times | 70, 90 & 120ns |
| Package Type | ceramic 66 pin P.G.A footprint |
| Write/Erase Cycles | 10,000 |
| Data Retention | 10 years |
| Operating Power | 1760 mW (max) |
| Standby Power | 1320 mW (max) |
| Operating Temperature (Military) | -55 to +125 C |
The device is available with access times of 70, 90, and 120ns.
The module is user-configurable as 32Kx32, 64Kx16, or 128Kx8.
Yes, it features byte and page write facility.
It features DATA Polling and a Toggle Bit for End of Write Detection.
