The PUMA68SV16000X is a 512K x 32 static RAM with a working voltage of 5V. It can be organized as 512K x 32, 1M x 16, 2M x 8, and has access times of 20/25ns. It meets commercial and industrial temperature grades.

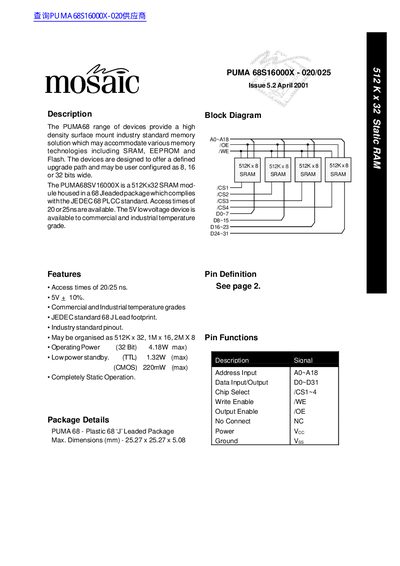

The PUMA68 range of devices from Mosaic provides a high density surface mount industry standard memory solution. The PUMA68SV16000X is a 512Kx32 SRAM module housed in a 68-leaded package which complies with the JEDEC 68 PLCC standard. The device may be user configured as 8, 16, or 32 bits wide and accommodates various memory technologies including SRAM, EEPROM, and Flash.
| Operating Temperature | 0 to 70 °C |
|---|---|
| Package Type | 68 pin J Leaded PLCC |
| Max Power Dissipation | 4.0 W |
The devices may accommodate various memory technologies including SRAM, EEPROM and Flash.
Yes, the devices may be user configured as 8, 16 or 32 bits wide.
The maximum supply voltage is 5.5V.
