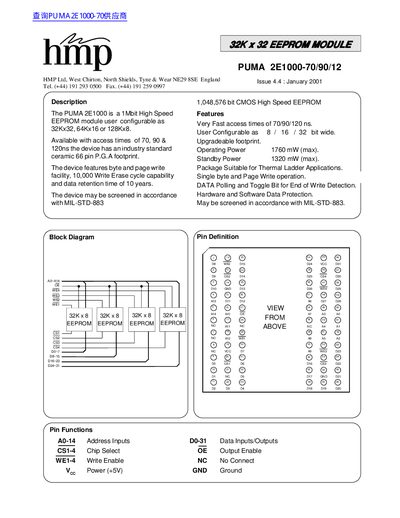

The HMP PUMA 2E1000 is a 1Mbit High Speed EEPROM module that is user-configurable as 32Kx32, 64Kx16, or 128Kx8. It features an industry-standard ceramic 66 pin P.G.A footprint and offers access times of 70, 90, and 120ns. The device supports byte and page write facilities, with a capability of 10,000 write/erase cycles and a data retention time of 10 years.
The datasheet details DC and AC operating conditions, including electrical characteristics for input/output leakage currents and supply voltages. It also describes device operation modes such as read, write, page mode write, data polling, and toggle bit functionality. The document includes timing waveforms for read/write cycles and outlines a military screening procedure in accordance with MIL-STD-883.
| Memory Capacity | 1Mbit |
|---|---|
| Configurations | 32Kx32, 64Kx16 or 128Kx8 |
| Access Times | 70, 90 & 120ns |
| Package Type | ceramic 66 pin P.G.A |
| Write/Erase Cycles | 10,000 |
| Data Retention | 10 years |
| Operating Power | 1760 mW (max) |
| Standby Power | 1320 mW (max) |
The device is available with access times of 70, 90, and 120ns.
Yes, the module is user-configurable as 32Kx32, 64Kx16, or 128Kx8.
The device has a capability of 10,000 write/erase cycles.
