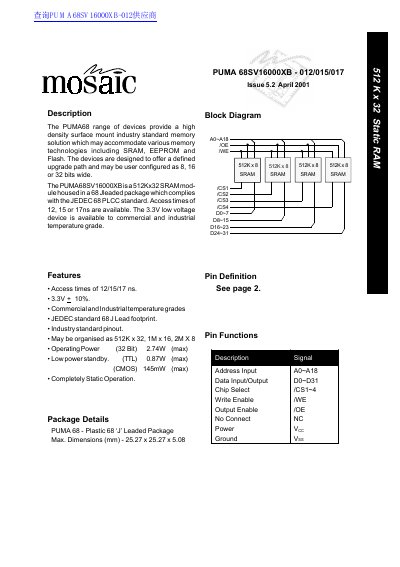

The PUMA68SV16000XB is a 512Kx32 SRAM module housed in a 68 Jleaded package which complies with the JEDEC 68 PLCC standard. Access times of 12, 15 or 17ns are available. The 3.3V low voltage device is available to commercial and industrial temperature grade.
The Mosaic PUMA68SV16000X is a high-density surface mount SRAM module housed in a JEDEC 68 PLCC package. It supports various memory technologies including SRAM, EEPROM, and Flash, and can be user-configured as 8, 16, or 32 bits wide. The device operates at 3.3V and is available in commercial and industrial temperature grades.
The datasheet provides detailed electrical characteristics, including absolute maximum ratings, DC electrical parameters, and capacitance values. It also includes comprehensive timing diagrams and truth tables for read and write cycles, specifying access times of 12, 15, or 17 nanoseconds depending on the specific variant.
| Operating Temperature (Commercial) | 0 to 70 °C |
|---|---|
| Operating Temperature (Industrial) | -40 to 85 °C |
| Max Power Dissipation | 4.0 W |
The device is a 512K x 32 SRAM module that can be configured as 1M x 16 or 2M x 8.
Yes, the device is available in an industrial temperature grade ranging from -40 to +85 °C.
