Agilent V150HT and Turbo-301 Pumps Technical Memo

This document introduces the technical specifications of V150HT series pumps and Turbo-301 series pumps, including outline drawings, installation drawings, pumping speed, and gives corresponding replacement suggestions.

Brand: Agilent
Document type: Product Leaflet
Language: English
Pages: 22
File format: PDF
File size: 680 KB
Published: 05 July, 2012
Updated: 30 September, 2023
MD5 checksum: 41FDE4F48C9F37C3AAD8CA466367F9ED
PDF: Agilent V150HT and Turbo-301 Pumps Technical Memo PDF

About this manual

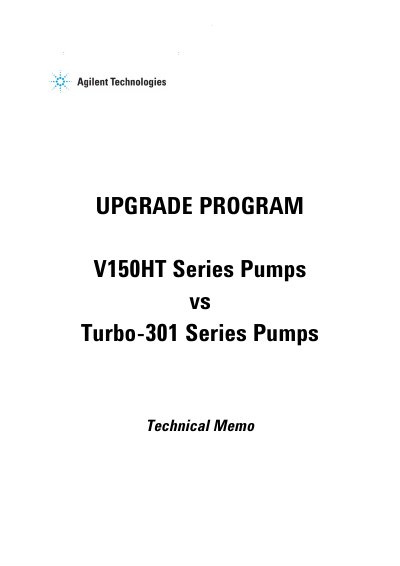

This document serves as a technical memo comparing the Agilent Technologies V150HT Series Pumps with the Turbo-301 Series Pumps. It provides outline drawings for various connection types (ISO63, CF4-%4, ISO100, and CF6) and suggests replacement configurations using reducers and on-board controllers.

What's inside

Outline Drawings
Replacement Suggested
Technical Specification
Pumping Speed
Accessories
Controller Comparison
Interconnection Schematic

Specifications

Total height (V150HT ISO63)	199.0 mm
Vent thread	M8
Purge thread	M12
Water fitting thread	1/8G
Inlet flange (V150HT)	ISO63

Frequently asked questions

What reducer is suggested for Turbo-301 ISO100?

A reducer IRC 100063 and an on-board controller are suggested.

Where is the vent port position referring to foreline flange for V150HT ISO63?

The vent port position refers to the right side of the foreline flange.
