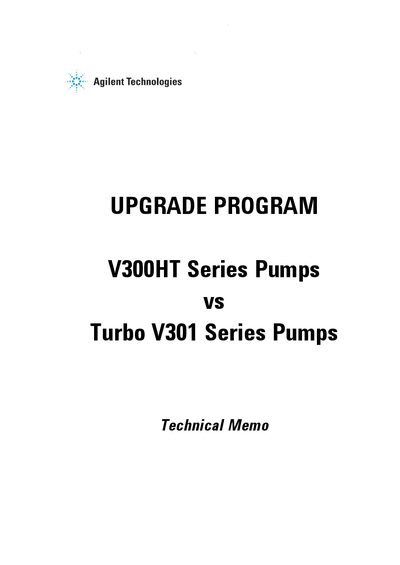

Agilent V300HT and Turbo V301 Series Pumps Technical Memo

This document is a technical memo of V300HT Series Pumps vs Turbo V301 Series Pumps

Brand: Agilent
Document type: Product Leaflet
Language: English
Pages: 18
File format: PDF
File size: 415 KB
Published: 05 July, 2012
Updated: 30 September, 2023
MD5 checksum: F0A08C7ACDADEAA4E4694BA95FB919C0
PDF: Agilent V300HT and Turbo V301 Series Pumps Technical Memo PDF

About this manual

This document serves as a technical memo comparing the Agilent V300HT Series Pumps against the Turbo V301 Series Pumps. It provides outline drawings and technical tables detailing physical dimensions, port heights, thread specifications, and flange configurations for various models including ISO100, CF6, and ISO160 variants.

What's inside

Outline drawings
Technical Specification
Technical Advantages
Accessories
Controller comparison
Outline Drawing
Pumping Speed Curve
Interconnection schematic

Specifications

Total height (V300HT ISO100)	168.6
Vent thread (V300HT)	M5
Water fitting thread	1/8G
Foreline Flange (V300HT)	KF25

Frequently asked questions

Where can I find the pumping speed curves?

The document includes graphs of nitrogen pumping speed versus inlet pressure for both series.

What is the total height of the V300HT ISO100 pump?

The total height of the V300HT ISO100 pump is 168.6.
