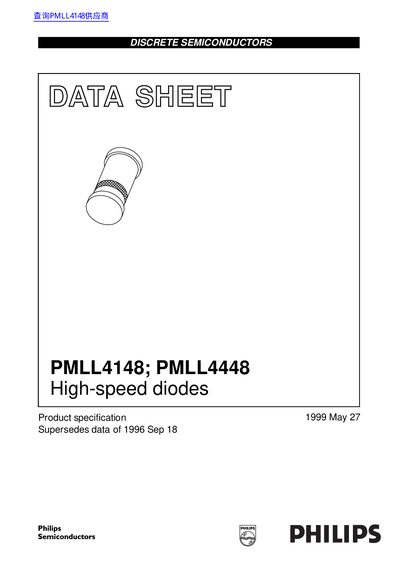

This datasheet provides detailed information on the PMLL4148 and PMLL4448 high-speed diodes, including package, outline, and technical specifications.
The document describes the PMLL4148 and PMLL4448 as high-speed switching diodes fabricated using planar technology. These components are encapsulated in small hermetically sealed glass SMD packages, specifically the SOD80C type, designed for fast logic applications.
| Package type | SOD80C SMD package |
|---|---|
| Reverse recovery time (max) | 4 ns |
| Continuous reverse voltage (max) | 75 V |
| Repetitive peak forward current (max) | 450 mA |
The maximum continuous reverse voltage rating is 75 V.
These diodes have a maximum switching speed of 4 ns.
