This document describes a single high-speed switching diode, fabricated in planar technology, and encapsulated in small hermetically sealed glass SOD80C SMD packages. The product features a small hermetically sealed glass SMD package, high switching speed (≤4 ns), continuous reverse voltage (≤75 V), repetitive peak reverse voltage (≤100 V), and repetitive peak forward current (≤450 mA). It is suitable for high-speed switching and inverse-polarity protection.

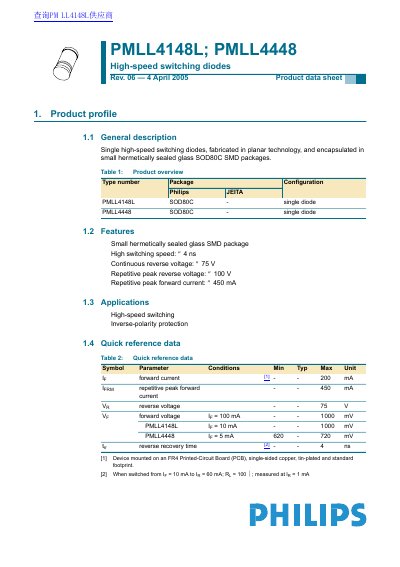

The document provides technical specifications for two types of single high-speed switching diodes: PMLL4148L and PMLL4448. These devices are fabricated in planar technology and encapsulated in small hermetically sealed glass SOD80C surface-mounted packages.
| Continuous reverse voltage | < 75 V |
|---|---|
| Repetitive peak forward current | < 450 mA |
| Reverse recovery time | < 4 ns |
| Package type | SOD80C |
They are suitable for high-speed switching and inverse-polarity protection.
The marking band indicates the cathode.
