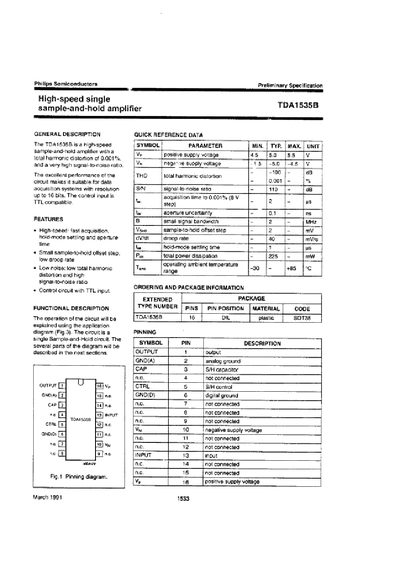

The Philips TDA1535B is a high-speed single sample-and-hold amplifier designed for data acquisition systems with up to 18-bit resolution. It features a total harmonic distortion of 0.001% and a high signal-to-noise ratio, making it suitable for precision applications. The device operates with a dual supply voltage and includes separate grounds for analog and digital signals to prevent feedthrough.
| Small Signal Bandwidth | 2 MHz |
|---|---|
| Negative Supply Voltage | -5.5 V to -4.5 V |
| Total Power Dissipation | 225 mW |
The maximum total power dissipation is 225 mW.
The maximum aperture delay time is 100 ns.
The maximum digital input current is 400 uA.
