TDA1517ATW is an integrated class-AB output amplifier produced by Philips Semiconductors. The chip has high output power, low output offset voltage, good ripple rejection, safe AC and DC short circuit protection, electrostatic discharge protection, thermal protection, reverse polarity safe, and can handle high energy output. It is widely used in multimedia applications.

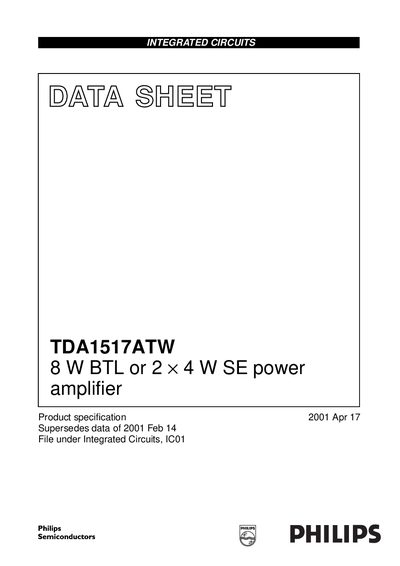

The Philips TDA1517ATW is an integrated class-AB output amplifier contained in a plastic heatsink thin shrink small outline package (HTSSOP 20). The device is primarily developed for multimedia applications and offers flexibility in use, supporting both mono Bridge-Tied Load (BTL) and stereo Single-Ended (SE) configurations. It features a fixed gain of 20 dB per amplifier channel.
| Supply voltage | 6 to 18 V |
|---|---|
| Output power (BTL) | 8 W |
| Output power (SE) | 2 x 4 W |
| Voltage gain | 20 dB |
| Package type | HTSSOP 20 |
| Operating temperature | -40 to +85 °C |
The device can be switched into three modes: Standby, Mute, and Operating using a mode select switch.
The maximum supply voltage is 18 V.
