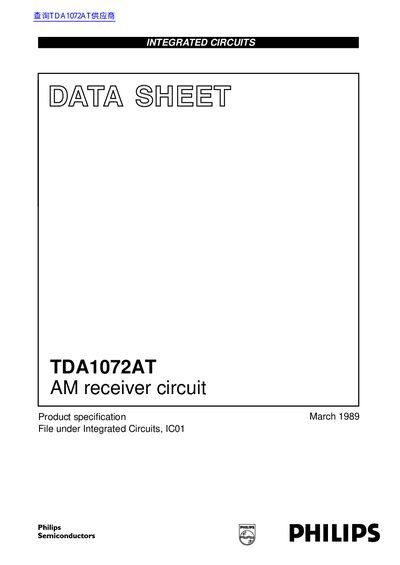

TDA1072AT is an AM receiver circuit integrated by Philips Semiconductors. It features extremely low distortion and high spectral purity. It can be used in mains-fed home receivers and car radios.
The Philips TDA1072AT is an integrated AM receiver circuit designed for use in mains-fed home receivers and car radios. It performs active and partial filtering functions, handling RF signals up to 500 mV and oscillator frequencies up to 50 MHz. The circuit features a gain-controlled RF stage, a double balanced mixer, and a temperature-compensated voltage-controlled oscillator suitable for electronic tuning.
| Supply voltage range | 7.5 - 10 V |
|---|---|
| Supply current range | 15 - 26 mA |
| Operating ambient temperature range | -40 +80 °C |
| Total power dissipation | 300 mW |
| Frequency range | 0.6 - 60 MHz |
| Package type | 16-lead mini-pack |
It is intended for use in mains-fed home receivers and car radios.
The circuit can handle RF signals up to 500 mV.
Yes, all pins have short-circuit protection to ground.
