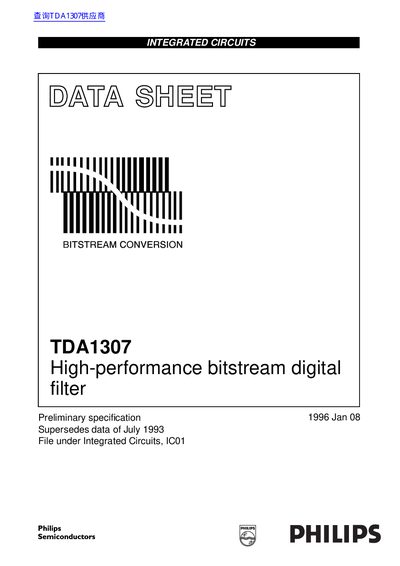

TDA1307 is a high-performance bitstream digital filter with multiple format inputs, sample interpolation, digital mute, digital audio output, and other features.
The TDA1307 is an advanced oversampling digital filter employing bitstream conversion technology, designed for use in premium performance digital audio applications. It accepts multiple input formats including 2S, Sony 16, 18, and 20-bit, and produces a high-quality bitstream suitable for use with the TDA1547 bitstream DAC.
| Supply Voltage | 4.5 to 5.5 V |
|---|---|
| Operating Ambient Temperature | -20 to +70 °C |
| Total Power Consumption | 400 mW |
| Oscillator Clock Frequency | 33.8688 MHz |
| Package Type | SDIP42 |
| Input Formats | 2S, Sony 16, 18 and 20-bit |
The typical oscillator clock frequency is 33.8688 MHz.
The total power consumption is 400 mW.
The supported input formats are 2S, Sony 16, 18, and 20-bit.
