The TDA1308 and TDA1308A are integrated class AB stereo headphone drivers designed for portable digital audio applications. They feature a wide temperature range, no switch ON/OFF clicks, excellent power supply ripple rejection, low power consumption, and short-circuit resistance. The devices offer high performance with a high signal-to-noise ratio, high slew rate, low distortion, and large output voltage swing.

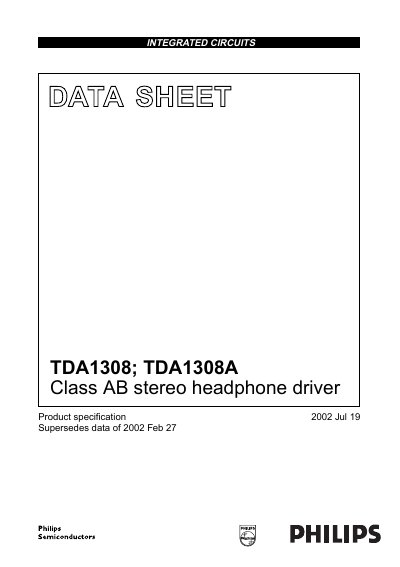

This document is a product specification datasheet for the TDA1308 and TDA1308A, which are integrated class AB stereo headphone drivers designed primarily for portable digital audio applications. The devices are available in DIP8, SO8, and TSSOP8 plastic packages.
| Supply Voltage (TDA1308 single) | 3.0 to 7.0 V |
|---|---|
| Supply Voltage (TDA1308A single) | 2.4 to 7.0 V |
| Signal-to-Noise Ratio | 100 dB (min) |
| Operating Ambient Temperature | -40 to +85 °C |
The TDA1308A can be used at low supply voltages.
The device can operate in an ambient temperature range of -40 to +85 °C.
