The TDA1310A is a stereo continuous calibration DAC with features such as space saving, low power consumption, wide dynamic range, and easy application.

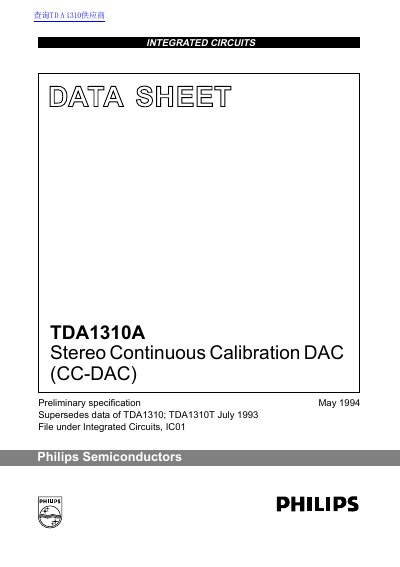

The Philips TDA1310A is a Stereo Continuous Calibration DAC (CC-DAC) designed for portable digital audio equipment. It utilizes an innovative continuous calibration concept based on an internal charge storage principle to ensure accuracy insensitive to ageing, temperature, and process variations. The device is fabricated in a 1.0 µm CMOS process, offering low power dissipation and a small package size in either DIL8 or SO8 formats.
| Resolution | 16 bits |
|---|---|
| Supply Voltage | 3.0 to 5.5 V |
| Supply Current | 3.0 to 4.0 mA |
| Full Scale Output Current | 0.9 to 1.41 mA |
| Total Harmonic Distortion | -65 to -61 dB |
| Signal-to-Noise Ratio | 86 to 92 dB |
| Operating Temperature | -40 to +85 °C |
| Input Bit Rate | 18.4 Mbits/s |
| Clock Frequency | 18.4 MHz |
| Package Types | DIL8 or SO8 |
It embodies the innovative technique of Continuous Calibration (CC) to ensure accuracy insensitive to ageing, temperature, and process variations.
No, it precludes zero-crossing distortion through a symmetrical offset decoding method.
The device is available in DIL8 plastic (SOT97DE) or SO8 plastic (SOT96AG) packages.
