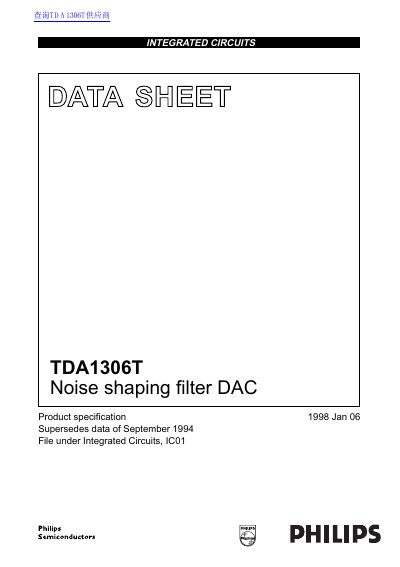

TDA1306T is a dual CMOS digital-to-analog converter with up-sampling filter and noise shaper
The TDA1306T is a dual CMOS digital-to-analog converter featuring an up-sampling filter and noise shaper. It combines oversampling up to 4 times with continuous calibration conversion to ensure that only simple 1st-order analog post-filtering is required. The device supports both I2S-bus data input mode and LSB fixed serial data input format.
| Supply Voltage (Digital/Analog/Op-Amp) | 4.5 to 5.5 V |
|---|---|
| Full-scale Output Voltage (RMS) | 0.935 to 1.41 V |
| Total Harmonic Distortion + Noise | -70 dB |
| Signal-to-Noise Ratio | -108 to -96 dB |
| Operating Temperature | -40 to +85 °C |
| System Clock Frequency | 6.4 to 18.4382 MHz |
It supports I2S-bus with up to 20 bits and LSB fixed serial format with 16, 18, or 20 bits.
Yes, in the pseudo-static application mode, it is pin compatible with the TDA1305T slave mode.
It uses a plastic small outline package with 24 leads and a body width of 7.5 mm.
