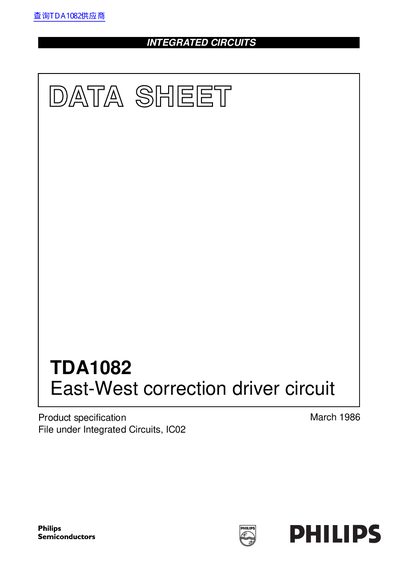

PHILIPS TDA1082 East-West correction driver circuit handbook

The TDA1082 is a monolithic integrated circuit driving east-west correction of colour tubes in television receivers. The circuit can be used for class-A and class-D operation and incorporates the following functions: • differential input amplifier • squaring stage • differential output amplifier with driver stage • protection stage with threshold • switching off the correction during flyback • voltage stabilizer
