The document describes a PIN photodiode product with features such as high responsivity, high reliability, and low dark current. It is suitable for applications such as optical data communication receivers, O-E converters, LANs, FDDI networks, and instrumentation.

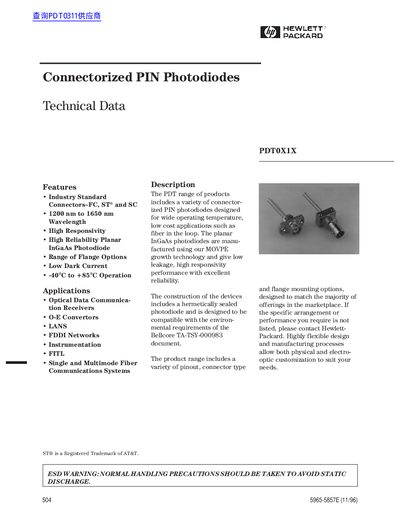

This document provides technical specifications for the Hewlett-Packard PDT range of connectorized PIN photodiodes. These devices utilize planar InGaAs photodiode technology to offer high responsivity, low dark current, and excellent reliability for optical data communication applications such as LANs and FDDI networks.
| Wavelength Range | 1200 nm to 1650 nm |
|---|---|
| Operating Temperature | -40°C to +85°C |
| Reverse Voltage (Max) | 20 V |
| Forward Current (Max) | 5 mA |
| Power Dissipation (Max) | 50 mW |
| Dark Current (Typical @ 25°C) | 1 nA |
| Responsivity (@ 1300 nm) | 0.7 A/W |
| Rise/Fall Times (Max) | 0.5 ns |
The devices feature industry standard FC, ST, and SC connectors.
Yes, they are designed for applications including FDDI Networks.
