The PDT0313-FC-A is a high reliability photodiode with an industry standard FC connector, low dark current, high reliability planar InGaAs PIN photodiode and high responsivity. Applications include instrumentation, O-E converters, single-mode and multimode fiber communication systems, and data communication receivers.

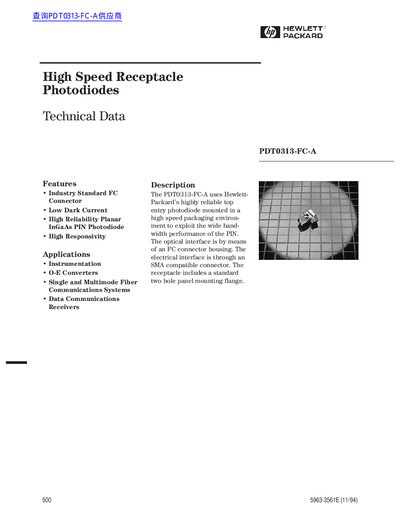

The Hewlett Packard PDT0313-FC-A is a high-speed receptacle photodiode utilizing a reliable top-entry InGaAs PIN design. It features an industry-standard FC optical connector housing and an SMA-compatible electrical interface, designed for use in instrumentation and fiber communications systems.
| Connector Type (Optical) | Industry Standard FC Connector |
|---|---|
| Photodiode Type | High Reliability Planar InGaAs PIN Photodiode |
| Reverse Voltage (Max) | -15 V |
| Forward Current (Max) | -5 mA |
| Operating Temperature Range | -20 to 65 °C |
| Responsivity @ 1300 nm | 0.75 A/W |
| Responsivity @ 1550 nm | 0.8 A/W |
| Operating Wavelength Range | 1100 to 1650 nm |
| Optical Return Loss (Min) | 22 dB |
| Bandwidth (-3 dB, 50 Ω) | 6 to 10 GHz |
| Dark Current (Max) | -2 nA |
It is designed for instrumentation, O-E converters, and single/multimode fiber communications systems.
It uses an FC connector for the optical interface and an SMA compatible connector for the electrical interface.
