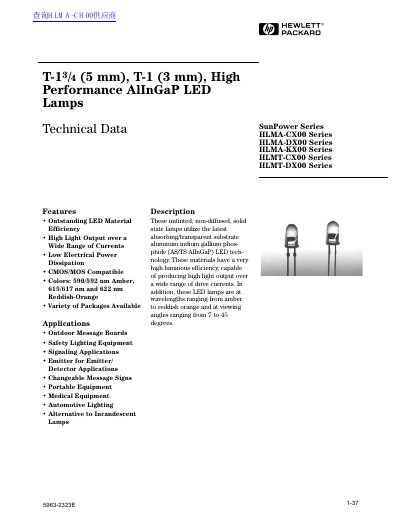

This document introduces the technical data of SunPower series HLMA-CX00 series, HLMA-DX00 series, HLMA-KX00 series, HLMT-CX00 series and HLMT-DX00 series T-13/4 (5 mm), T-1 (3 mm) high performance AlInGaP LED lamps.
This document provides technical data for Hewlett-Packard SunPower Series High Performance AlInGaP LED lamps. The series includes the HLMA-CX00, HLMA-DX00, HLMA-KX00, HLMT-CX00, and HLMT-DX00 models, available in T-13/4 (5 mm) and T-1 (3 mm) packages. The LEDs feature outstanding efficiency and are suitable for applications such as outdoor message boards, safety lighting, signaling, and automotive lighting.
| LED Material | Aluminum Indium Gallium Phosphide (AlInGaP) |
|---|---|
| Operating Temperature Range | -40 to 100°C |
| Soldering Temperature | 260°C for 5 seconds |
| Recommended Drive Current | 10 to 30 mA |
| Colors Available | 590/592 nm Amber, 615/617 nm and 622 nm Reddish-Orange |
Drive currents between 10 and 30 mA are recommended for best long term performance.
The operating temperature range is -40 to 100°C.
