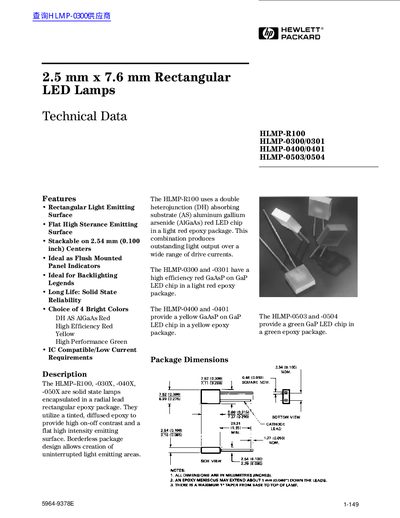

This file is about the specification of HLMP-R100, HLMP-0300 and HLMP-0400, and details the features of the products, including light emitting surface shape, color, light power, etc.
This datasheet provides technical specifications for a series of rectangular LED lamps manufactured by HP. The HLMP-R100 uses an AlGaAs red chip, while the other models (HLMP-030X, -040X, -050X) utilize GaAsP or GaP chips in various epoxy packages to produce high-efficiency red, yellow, and green light. These devices feature a flat, high-intensity emitting surface ideal for flush-mounted panel indicators and backlighting applications.
| Package Dimensions | 2.54 mm x 7.6 mm |
|---|---|
| Operating Temperature Range | -20 to +100 °C (AlGaAs/Red/Green), -55 to +100 °C (Yellow) |
| Peak Forward Current | 300 mA (R100), 90 mA (Red/Green), 60 mA (Yellow) |
| Forward Voltage | 1.8 V to 3.0 V typical at 20 mA |
| Reverse Breakdown Voltage | 5.0 V at IR = 100 µA |
The series includes Red (HLMP-R100, HLMP-0300/0301), Yellow (HLMP-0400/0401), and Green (HLMP-0503/0504).
Yes, they are designed to be stackable on 2.54 mm (0.100 inch) centers.
The typical axial luminous intensity for the HLMP-R100 is 11.0 mcd at 20 mA DC.
