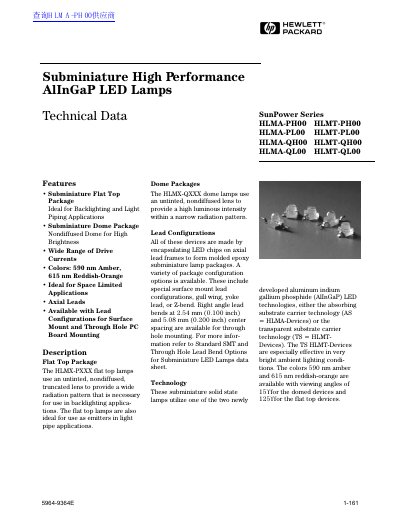

The document provides technical data and features of the 1-161 H Subminiature High Performance AlInGaP LED Lamps. It includes the subminiature flat top package and subminiature dome package, which are ideal for backlighting and light piping applications. The lamps come in a wide range of drive currents and are available in 590 nm amber and 615 nm reddish-orange colors. They are suitable for space-limited applications and feature axial leads. The document also mentions the availability of lead configurations for surface mount and through hole PCB mounting.
This document provides technical specifications for the SunPower Series HLMA-PH00, HLMT-PH00, HLMA-PL00, HLMT-PL00, HLMA-QH00, HLMT-QH00, HLMA-QL00, and HLMT-QL00 subminiature high performance AlInGaP LED lamps. The devices are designed for backlighting and light piping applications.
| Technology Material | Aluminum Indium Gallium Phosphide (AlInGaP) |
|---|---|
| Available Colors | 590 nm Amber, 615 nm Reddish-Orange |
| Operating Temperature Range | -40 to +100°C |
| Storage Temperature Range | -55 to +100 °C |
| LED Junction Temperature | 110°C |
| Peak Forward Current (HLMA) | 200 mA |
| DC Forward Current (HLMA) | 50 mA |
| Peak Forward Current (HLMT) | 100 mA |
Drive currents between 5 mA and 30 mA are recommended.
The maximum reverse voltage is 5 V.
