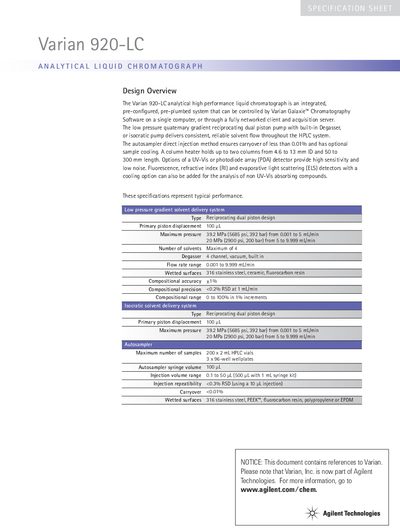

The Varian 920-LC analytical high performance liquid chromatograph is an integrated, pre-configured, pre-plumbed system that can be controlled by Varian Galaxie™ Chromatography Software on a single computer, or through a fully networked client and acquisition server. The low pressure quaternary gradient reciprocating dual piston pump with built-in Degasser, or isocratic pump delivers consistent, reliable solvent flow throughout the HPLC system. The autosampler direct injection method ensures carryover of less than 0.01% and has optional sample cooling. A column heater holds up to two columns from 4.6 to 13 mm ID and 50 to 300 mm length. Options of a UV-Vis or photodiode array (PDA) detector provide high sensitivity and low noise. Fluorescence, refractive index (RI) and evaporative light scattering (ELS) detectors with a cooling option can also be added for the analysis of non UV-Vis absorbing compounds.
The Varian 920-LC is an integrated, pre-configured analytical high performance liquid chromatograph (HPLC) system. It features a low pressure quaternary gradient reciprocating dual piston pump with a built-in degasser and an autosampler with direct injection. The system can be controlled by Varian Galaxie Chromatography Software on a single computer or through a networked client and acquisition server.
| Primary piston displacement | 100 ul |
|---|---|
| Maximum pressure (0.001 to 5 mL/min) | 39.2 MPa (5685 psi, 392 bar) |
| Maximum pressure (5 to 9.999 mL/min) | 20 MPa (2900 psi, 200 bar) |
| Flow rate range | 0.001 to 9.999 mL/min |
| Wavelength range (UV-Vis) | 190 to 900 nm |
| Wavelength range (PDA) | 190 to 950 nm |
| Excitation wavelength range (Fluorescence) | 200 to 850 nm |
| Emission wavelength range (Fluorescence) | 250 to 900 nm |
| Settable temperature range (Autosampler) | 4 to 35 °C |
The system supports a maximum of 4 solvents.
The injection repeatability is less than 0.3% RSD using a 10 ul injection.
The carryover is less than 0.01%.
