This document provides a detailed overview of the technical specifications of the Varian Cary 50 UV-Vis spectrophotometer.

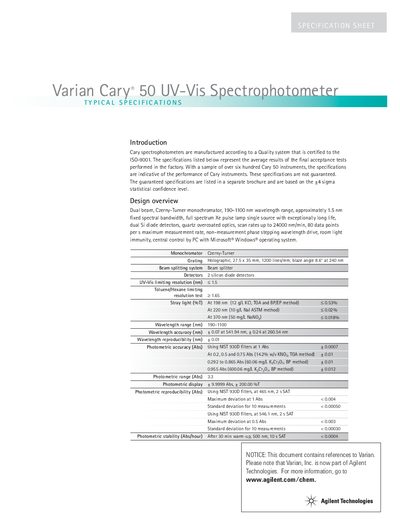

This document provides typical specifications for the Varian (now Agilent) Cary 50 UV-Vis Spectrophotometer. The instrument features a Czerny-Turner monochromator with a holographic grating, operating in a wavelength range of 190 to 1100 nm. It utilizes a Xenon pulse lamp and dual silicon diode detectors for high-resolution measurements.
The datasheet details key performance metrics such as photometric accuracy, stray light levels at specific wavelengths, and scan rates up to 24,000 nm/min. Physical specifications include instrument dimensions of 590 mm x 500 mm x 205 mm (WxDxH) and a weight of 21 kg. It also outlines recommended environmental conditions for storage and operation.
| Wavelength range | 190-1100 nm |
|---|---|
| Spectral bandwidth | Fixed at 1.5 nm |
| Maximum scan rate | 24,000 nm/min |
| Photometric range | 3.3 Abs |
| Instrument weight | 21 kg |
| Dimensions (WxDxH) | 590 mm x 500 mm x 205 mm |
| Stray light at 198 nm | < 0.53% |
Yes, due to room light immunity of the Cary 50.
The instrument operates within a wavelength range of 190-1100 nm.
The maximum scan rate is 24000 nm/min.
The minimum sample volume is approximately 5.0 uL.
