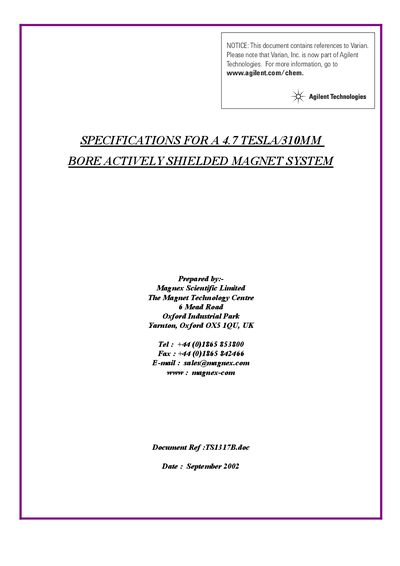

Magnex MRBR 4.7/310/AS Actively Shielded Magnet System Specifications

This is a technical specification of the MRBR 4.7/310/AS superconducting magnet system, which introduces the composition, features and performance parameters of the system

Brand: Agilent
Category: Industrial Robot
Document type: Product Leaflet
Language: English
Pages: 11
File format: PDF
File size: 328 KB
Published: 04 July, 2012
Updated: 30 September, 2023
Model: MRBR 4.7
MD5 checksum: BCD119CE4E955136D74AB79F2651A6EC
PDF: Magnex MRBR 4.7/310/AS Actively Shielded Magnet System Specifications PDF

About this manual

This document provides technical specifications for the MRBR 4.7/310/AS system, a complete superconducting magnet system intended for research studies on clinical/biological applications of NMR imaging (MRI) and NMR spectroscopy (MRS). The system features a 4.7 Tesla central field housed in a horizontal room temperature bore of 310mm.

What's inside

Description of System
The Superconducting Magnet
The Cryostat
System Components
Superconducting Shim Coils
Field Homogeneity Values
Cryogen Details
Standard Ancillary Parts

Specifications

Central Field	4.7 Tesla (200MHz 'P)
Fringe Field Axial	2.3 metres
Fringe Field Radial	1.5 metres
Cryostat Length	1280mm
Overall Height	2158mm
Overall Diameter	1720mm

Frequently asked questions

What is the primary intended use of the MRBR 4.7/310/AS system?

The system is primarily intended for research studies on the clinical and biological applications of NMR imaging (MRI) and NMR spectroscopy (MRS).

What is the central field strength of the magnet?

The central field is 4.7 Tesla at a frequency of 200MHz for protons.
