The Varian 500-MS LC ion trap is an ion trap based LC/MS system. The 500-MS offers exceptional sensitivity, mass stability, resolution, and enhanced charge capacity (ECC™), making it the system of choice for pharmaceutical, clinical toxicological, environmental, and other applications.

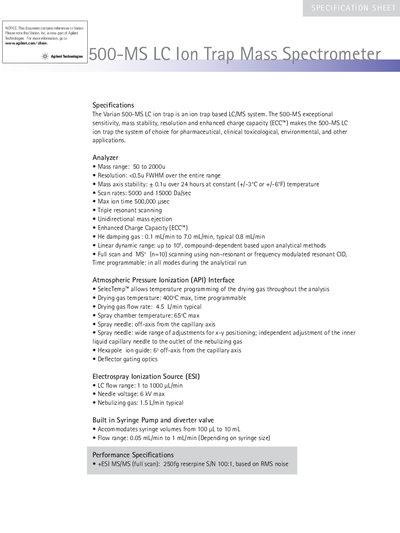

This document provides the technical specifications for the Agilent 500-MS LC Ion Trap Mass Spectrometer. The system features exceptional sensitivity, mass stability, and resolution, making it suitable for pharmaceutical, clinical toxicological, and environmental applications. It includes an ion trap analyzer with a mass range of 50 to 2000u and supports both Electrospray Ionization (ESI) and Atmospheric Pressure Chemical Ionization (APCI) sources.
| Mass range | 50 to 2000u |
|---|---|
| Resolution | <0.5u FWHM over the entire range |
| Mass axis stability | + 0.1u over 24 hours at constant temperature |
| Max ion time | 500,000 psec |
| LC flow range (ESI) | 1 to 1000 pL/min |
| Needle voltage (ESI) | 6 kV max |
| Power requirements | 100-120, 200-240 Vac, +10 %, 50/60 Hz, 3200 VA |
| Weight (MS) | 135 lb/ 62 kg |
| Weight (Foreline Pump) | 73 lb/ 33 kg (x 2) |
The mass range is 50 to 2000u.
The resolution is less than 0.5u FWHM over the entire range.
The maximum needle voltage for ESI is 6 kV.
