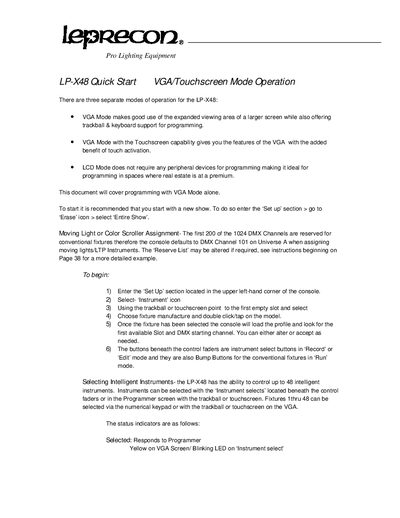

The LP-X48 is a professional lighting equipment with three modes of operation: VGA Mode, VGA Mode with Touchscreen, and LCD Mode. VGA Mode utilizes a larger screen and supports trackball and keyboard for programming. VGA Mode with Touchscreen adds touch activation feature. LCD Mode is ideal for programming in limited space. This document covers programming with VGA Mode. It provides instructions on starting a new show, assigning moving lights or color scrollers, and accessing the setup section.
This document provides quick start instructions for the Leprecon LP-X48 lighting console in VGA Mode. It details three operation modes (VGA, VGA with Touchscreen, and LCD) but focuses on programming using a connected PC or touchscreen interface without peripheral devices like trackballs or keyboards.
The guide covers essential setup steps including erasing shows, assigning intelligent instruments to DMX channels, and selecting fixtures via instrument buttons. It explains how to create Focus, Color, and Beam labels for efficient programming and describes methods for manipulating these properties using the Label Picker or Effects Programmer.
The console offers VGA Mode, VGA Mode with Touchscreen capability, and LCD Mode.
The console has the ability to control up to 48 intelligent instruments.
Up to 12 Playbacks can be run at the same time.
