Agilent ZORBAX RRHD Eclipse Plus Phenyl-Hexyl Rapid Resolution High Definition Threaded Column is a high resolution liquid chromatography column specially designed for high polarity samples. It provides ultra high resolution and excellent peak shape, and is suitable for acidic and neutral samples, but is especially suitable for the separation of basic compounds that produce poor peak shapes on other columns.

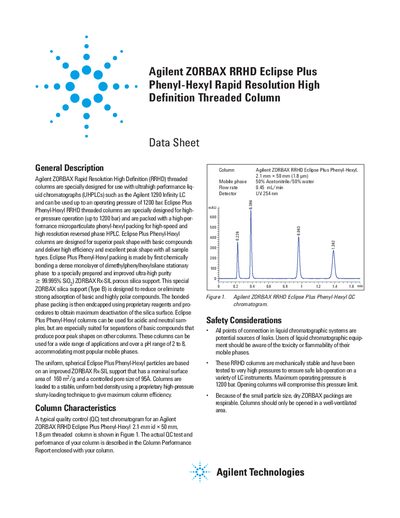

This document provides technical specifications and operational guidelines for Agilent ZORBAX RRHD Eclipse Plus Phenyl-Hexyl threaded columns. These columns are specifically designed for use with ultrahigh performance liquid chromatographs (UHPLCs) and feature a high-performance microparticulate phenyl-hexyl packing.
| Maximum operating pressure | 1200 bar |
|---|---|
| Maximum operating temperature | 60 °C |
| pH range | 2 to 8 |
| Particle surface area | 160 m2/g |
| Pore size | 9A |
The columns can be used up to an operating pressure of 1200 bar.
These columns are designed for use over a pH range of 2 to 8.
The columns are best used with methanol/water or acetonitrile/water mobile phases.
