Agilent Technologies 5990-9921EN - Agilent 1260 Infinity Multi-Detector GPC/SEC System Data sheet

Agilent 1260 Infinity Multi-Detector GPC/SEC System is a high-end multiple detector platform, which provides not only accurate molecular weight data independent of the chemistry of the standards, but also gives insight into the behavior of the polymer in solution.

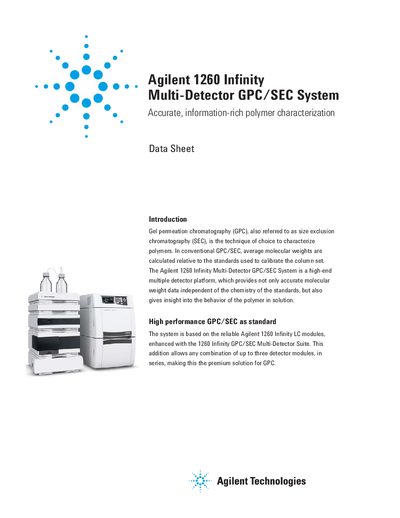

Agilent Technologies 5990-9921EN - Agilent 1260 Infinity Multi-Detector GPC/SEC System Data sheet - cover page
Brand
Agilent
Document type
Datasheet
Language
English
Pages
4
File format
PDF
File size
161 KB
Published
04 July, 2012
Updated
30 September, 2023
MD5 checksum
4BE03D52E17B74961622FE05D75DCE0A

About this manual

The Agilent 1260 Infinity Multi-Detector GPC/SEC System is a high-end platform designed for accurate molecular weight data independent of standard chemistry. It builds on the reliable Agilent 1260 Infinity LC modules with an enhanced suite that allows any combination of up to three detector modules in series.

What's inside

  • Introduction
  • Refractive Index Detector
  • Light Scattering Detector
  • Viscometer
  • Triple Detection
  • Ultra Low Dispersion
  • Baseline Stability
  • GPC/SEC Software
  • Modular Cabinet Design
  • Specifications

Specifications

Light Scattering Cell Volume10 pL
RI Cell Volume6 pL
Detector Heating Temperature Range30 - 60 °C
Light Scattering Laser Wavelength660 nm
Rayleigh Scattering Angles15 ° and 90°

Frequently asked questions

What is the primary function of the Agilent 1260 Infinity Multi-Detector GPC/SEC System?

It provides accurate molecular weight data independent of the chemistry of the standards and gives insight into polymer behavior in solution.

How many detector modules can be combined in this system?

The system allows any combination of up to three detector modules in series.

What advantage does the triple detection configuration provide regarding calibration?

It provides absolute molecular weights without the need for a column calibration.
