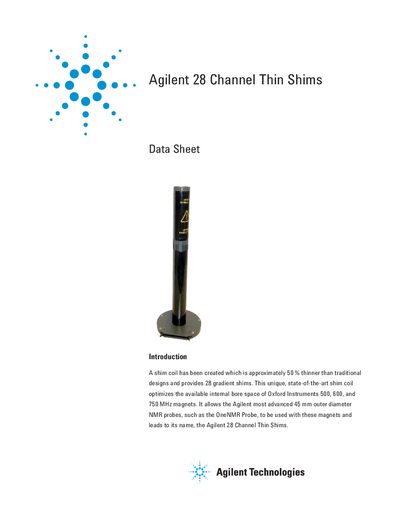

This document introduces the features of Agilent 28 Channel Thin Shims. It is a shim coil that is approximately 50% thinner than traditional designs and provides 28 gradient shims. This shim coil optimizes the available internal bore space of Oxford Instruments 500, 600, and 750 MHz magnets, allowing the use of Agilent's most advanced 45 mm outer diameter NMR probes, such as the OneNMR Probe. It offers excellent control of field homogeneity.
The Agilent 28 Channel Thin Shims is an approximately 50% thinner shim coil design that provides 28 gradient shims. It optimizes the available internal bore space of Oxford Instruments 500, 600, and 750 MHz magnets, allowing for the use of Agilent's advanced 45 mm outer diameter NMR probes like the OneNMR Probe.
The device replaces the currently installed shim tube in Oxford magnets and is compatible with various probe generations. It includes a thermocouple port for temperature monitoring and utilizes self-locking connectors for purge gas flow control.
| Shim Channel Count | 28 gradient shims |
|---|---|
| Thickness Reduction | Approximately 50% thinner |
| Compatible Magnet Frequencies | 500, 600, and 750 MHz |
| Compatible Probe Diameter | 45 mm outer diameter |
| Shim Power Supply Part Number | 9100075100 |
It creates a shim coil that is approximately 50% thinner than traditional designs, optimizing available internal bore space.
They allow the use of Agilent's advanced 45 mm outer diameter NMR probes, such as the OneNMR Probe.
No, there is no required maintenance for Thin Shims.
